說明

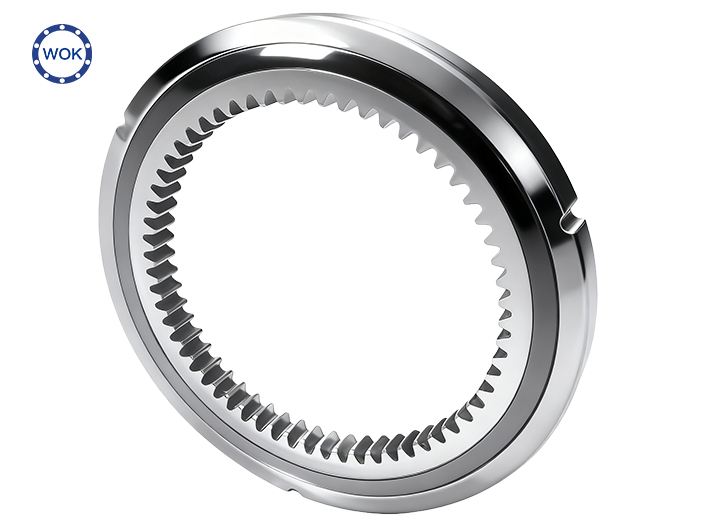

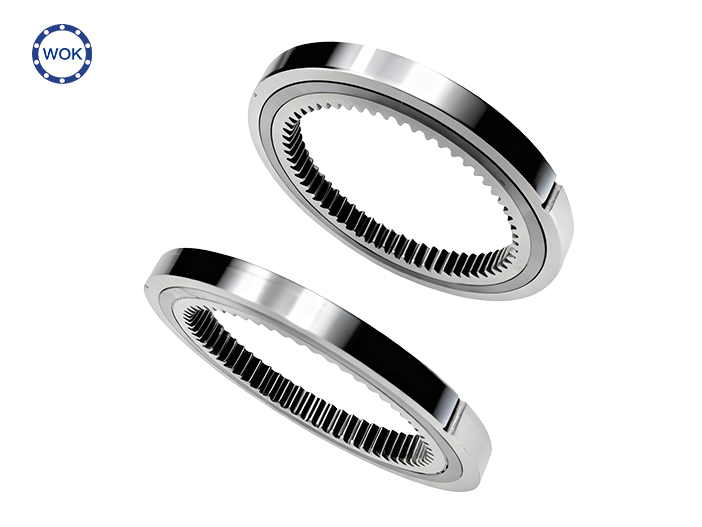

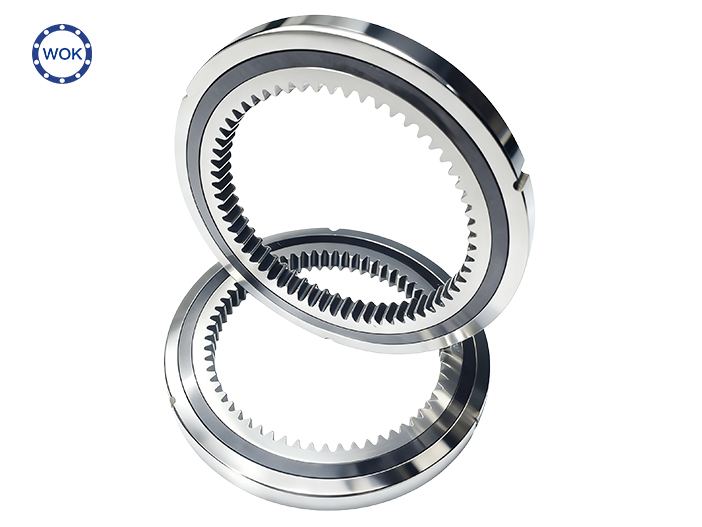

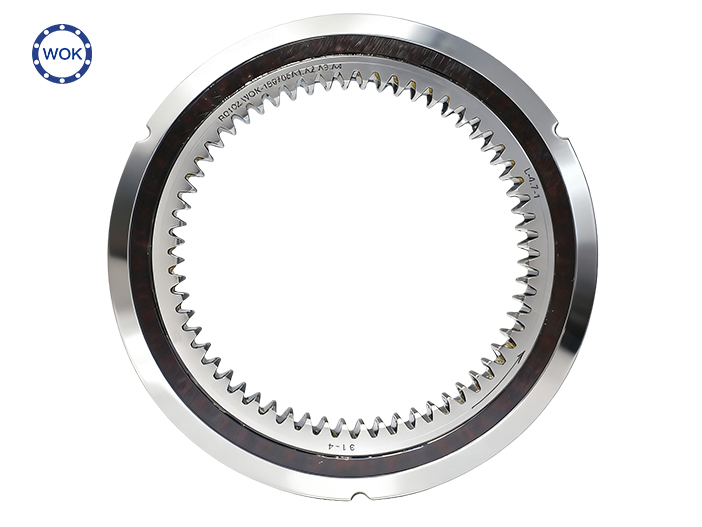

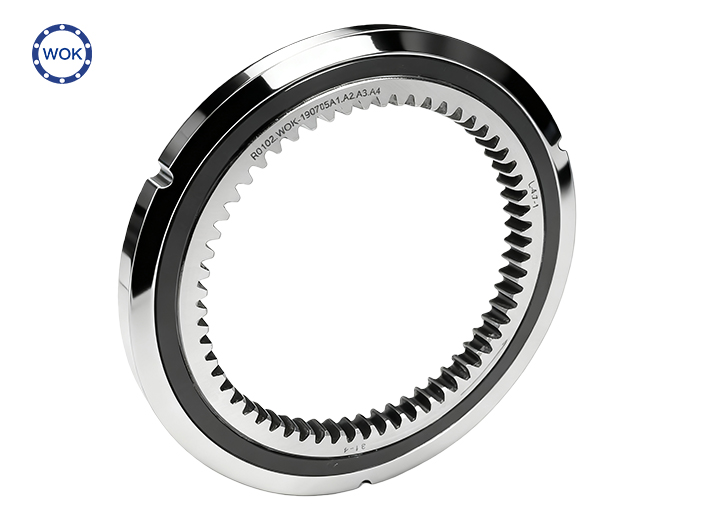

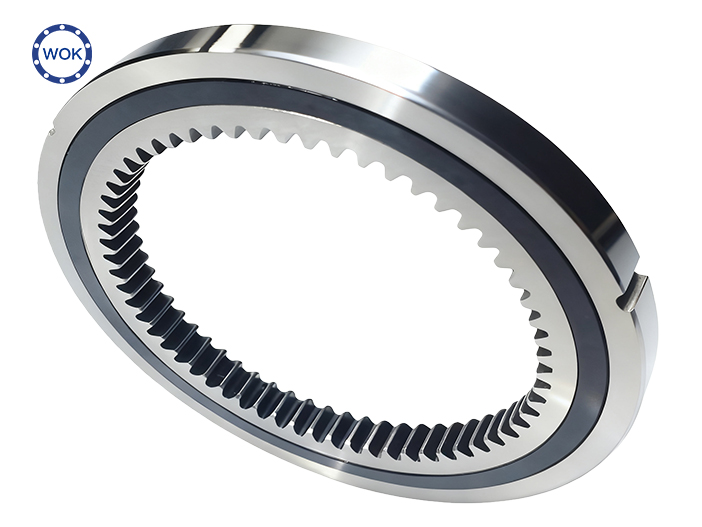

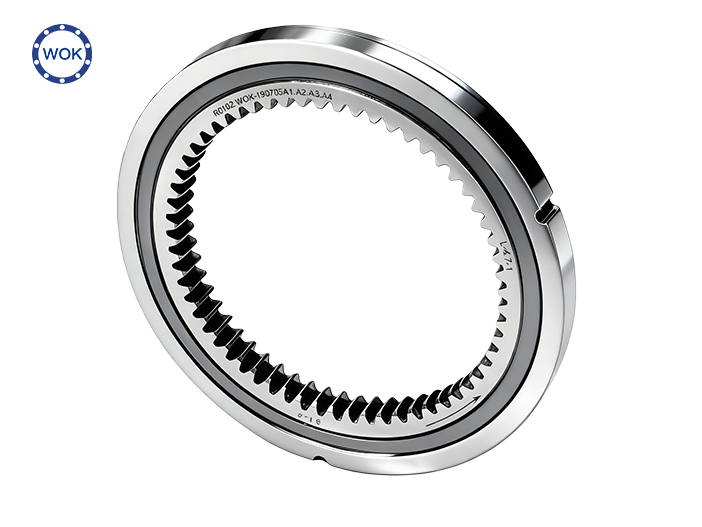

本款單向離合器主要應用于配備內轉子電機的電動自行車，由本公司獨立研發和生產。使用本離合器轉子的動平衡效果更好，提升了電動自行車電機的使用性能，具有使用壽命長，耐高溫，低噪音，性能更穩定等優點。

This one-way clutch is mainly used for electric bicycles equipped with an inner rotor motor, and is independently developed and produced by our company. The use of this clutch rotor has a better dynamic balance effect, improves the performance of electric bicycle motors, and has advantages such as long service life, high temperature resistance, low noise, and more stable performance.

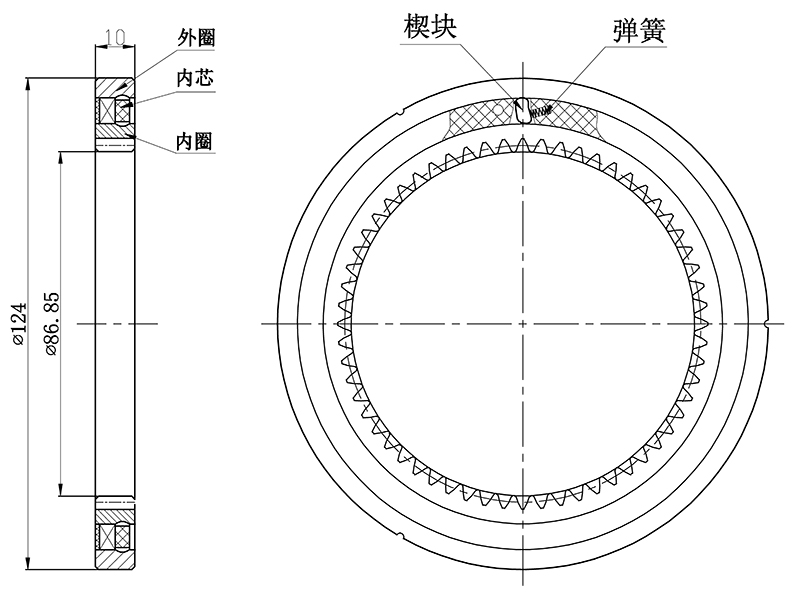

技術要求

1.內部使用高潤滑脂填料并做好密封；

2.零件在裝配前必須清理和清洗干凈，不得有毛刺、飛邊、氧化皮、銹蝕、切屑、油污、著色劑和灰塵；

3.單向器額定扭矩50N.m，最大扭矩大于80N.m，離開時轉動靈活，離合次數大于30萬次以上；

4.單向器打滑時滾珠必須工作，此時內外圓圈同心度保持在0.035以內，單向器傳遞扭矩時棘輪工作，此時內外圈同心度0.045以內。

1. Use high lubricating grease fillers internally and seal them properly;

2. The parts must be cleaned and cleaned before assembly, without burrs, flash edges, oxide skin, rust, chips, oil stains, colorants, and dust;

3. The rated torque of the one-way clutch is 50N. m, and the maximum torque is greater than 80N. m. It can rotate flexibly when leaving, with more than 300000 clutch times;

4. When the one-way clutch slips, the ball must work. At this time, the concentricity of the inner and outer rings remains within 0.035. When the one-way clutch transfers torque, the ratchet operates. At this time, the concentricity of the inner and outer rings is within 0.045.
