電動自行車內轉子電機離合器技術參數表 E-bike Inner Rotor Motor Clutch Technical Specification
產品詳情
| 電動自行車內轉子電機離合器技術參數表 E-bike Inner Rotor Motor Clutch Technical Specifications Table | ||||||||
| 型號 Product Code | 外徑 external diameter | 齒頂圓直徑 Addendum diameter | 齒根圓直徑 Root circle diameter | 分度圓直徑 Dividing circle diamerer | 齒數 Number of teeth | 模數 Modulus | 壓力角 Pressure angle | 精度等級 Accuracy class |
| DLK077×22-25-X | 77 | 65.25 | 70.75 | 67.5 | 54 | 1.25 | 20° | 8GJ |
| DLK087×20.5-39-X | 87 | 76.3 | 81.1 | 78 | 78 | 1 | 20° | 8GJ |
| DLK94-Z63 | 94 | 61 | 65.5 | 63 | 63 | 1 | 20° | 8EG/GB1095 |
| DLK98-Z54 | 98 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK99-Z54 | 99 | 65.35 | 70.62 | 54 | 1.25 | 20° | GB10095-888GJ | |
| DLK103.5-Z58 | 103.5 | 70 | 75.625 | 72.5 | 58 | 1.25 | 20° | 8級-GB/T10095 |
| DLK110×21.5-40-Z81 | 110 | 98.7 | 104.33 | 101.25 | 81 | 1.25 | 20° | 8級/GB10095 |
| DLK116-Z69 | 116 | 83.986 | 89.611 | 69 | 1.25 | 20° | GB10095-888GJ | |
| DLK124-Z60 | 124 | 86.85 | 93.6 | 90 | 60 | 1.5 | 20° | 8EG/GB1095 |
| DLK129-Z75 | 129 | 91.25 | 96.785 | 92.419 | 75 | 1.25 | 20° | JGMA 3級 |
| 1. 本產品適用于電動自行車輪轂電機(內轉子電機) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2. DLK077×22-25-X 對應產品型號編碼-DLK12M L-5.0-Z 20211202 → WOK (右旋) DLK077×22-25-X Corresponding product model code: DLK12M L-5.0-Z 20211202 → WOK(right rotation) | ||||||||
說明

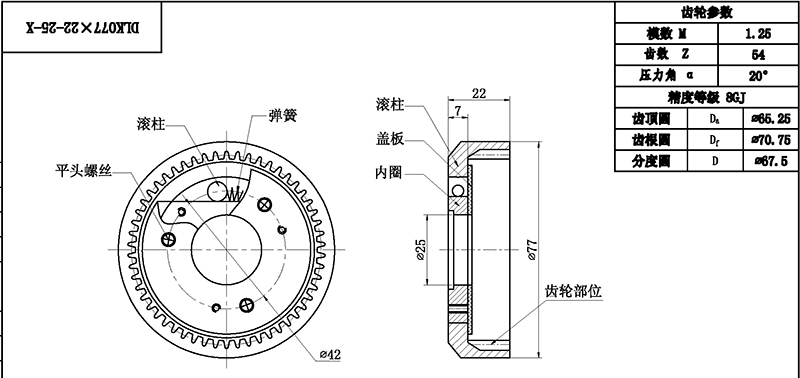

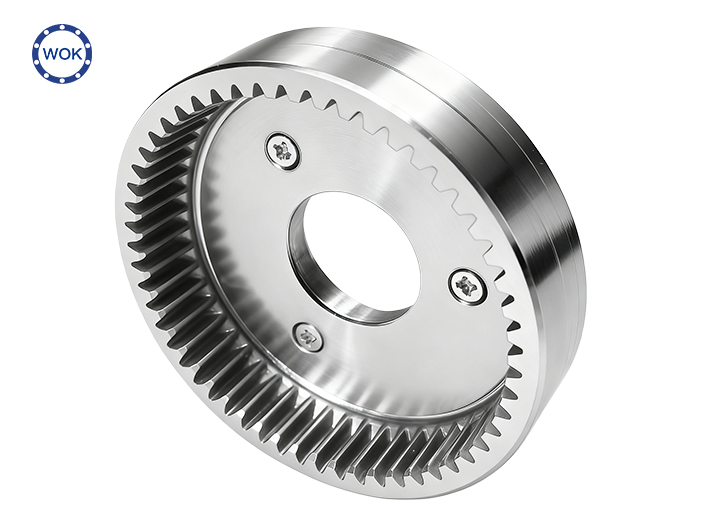

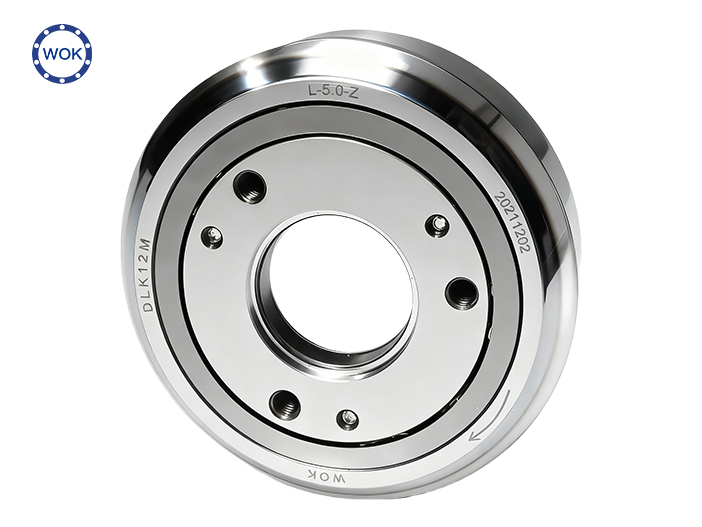

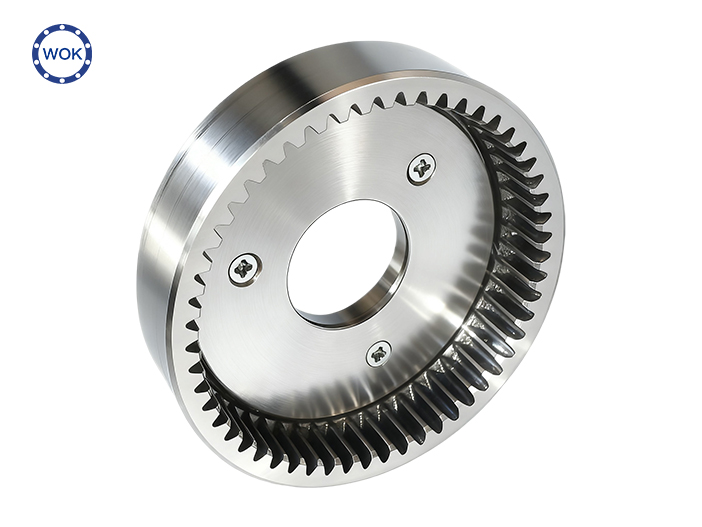

本款單向離合器主要應用于配備內轉子電機的電動自行車，由本公司獨立研發和生產。使用本離合器轉子的動平衡效果更好，提升了電動自行車電機的使用性能，具有使用壽命長，耐高溫，低噪音，性能更穩定等優點。

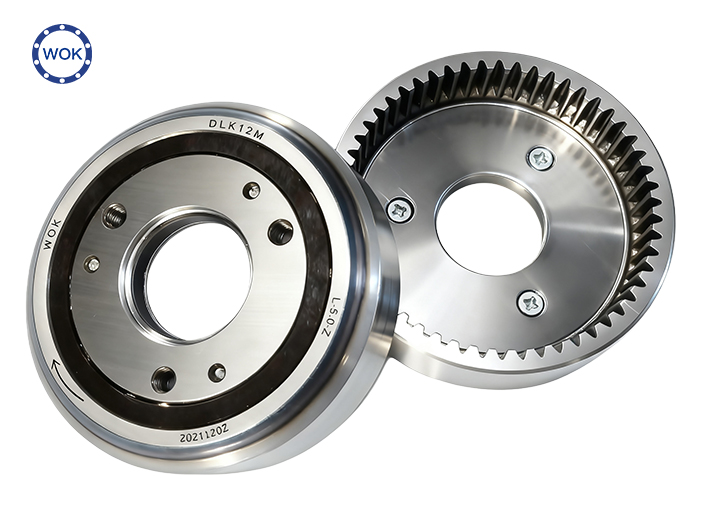

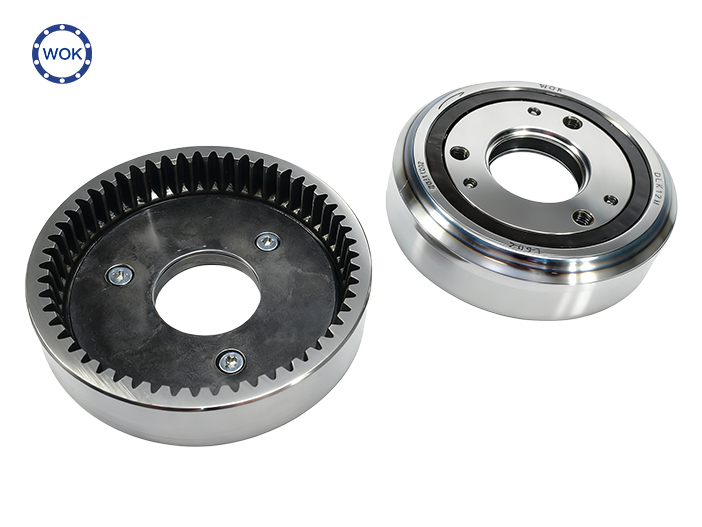

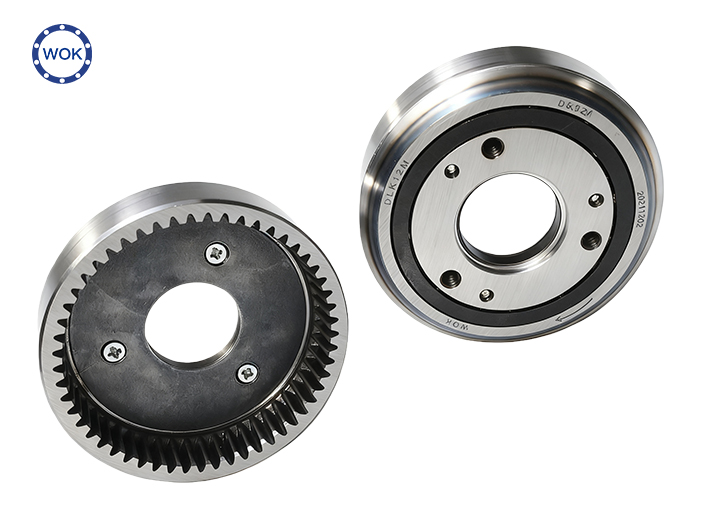

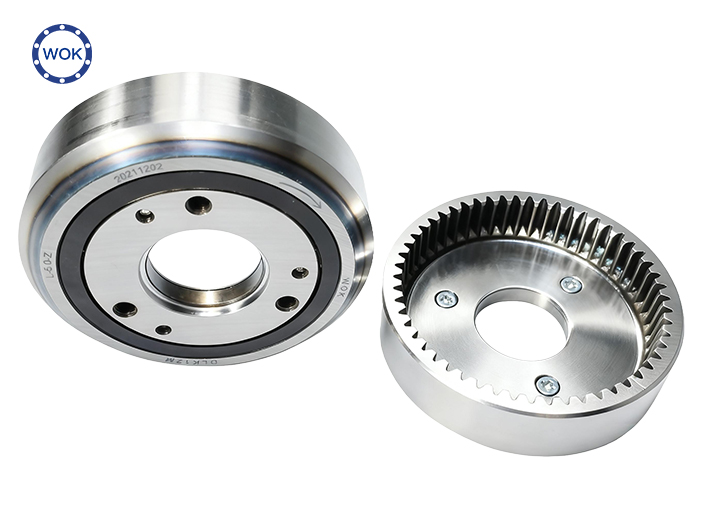

DLK077×22-25-X——This one-way clutch is mainly used in electric bicycles equipped with inner rotor motors, and is independently developed and produced by our company. The dynamic balance effect of using the clutch rotor is better, the use performance of the electric bicycle motor is improved, and it has the advantages of long service life, high temperature resistance, low noise, and more stable performance.
技術要求：
1.離合器能經受30萬次離合實驗不失效，扭力在40-50N之間；最大扭矩不大于180N.m，保證其正常，不能打滑，卡死等現象。扭矩達120N.m時，受力點不能有劃痕。
1. The clutch can withstand 300,000 clutch experiments without failure, and the torque is between 40-50N; the maximum torque is greater than 180N.m, to ensure that it is normal, and it cannot slip or jam. When the torque reaches 120N.m, the stress point should not have scratches.
