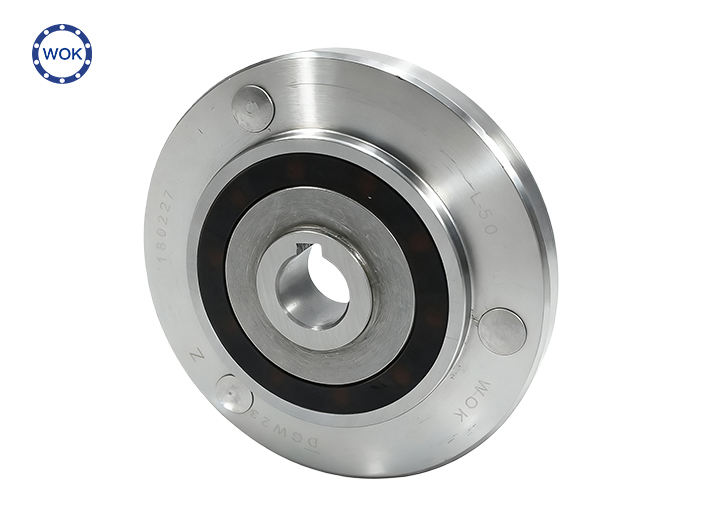

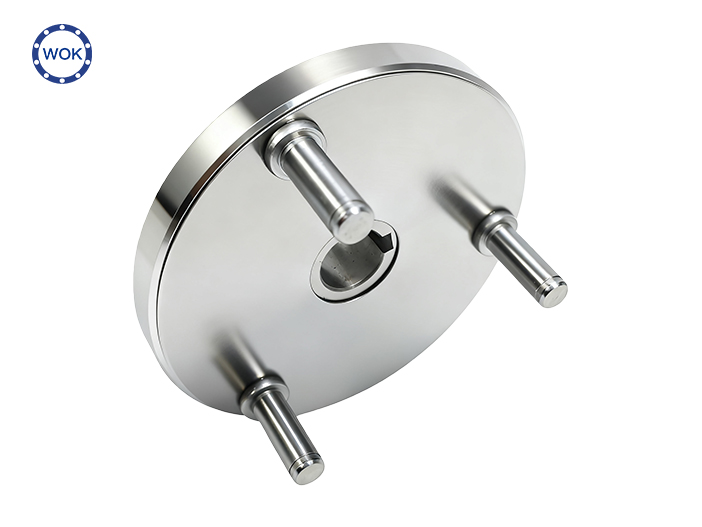

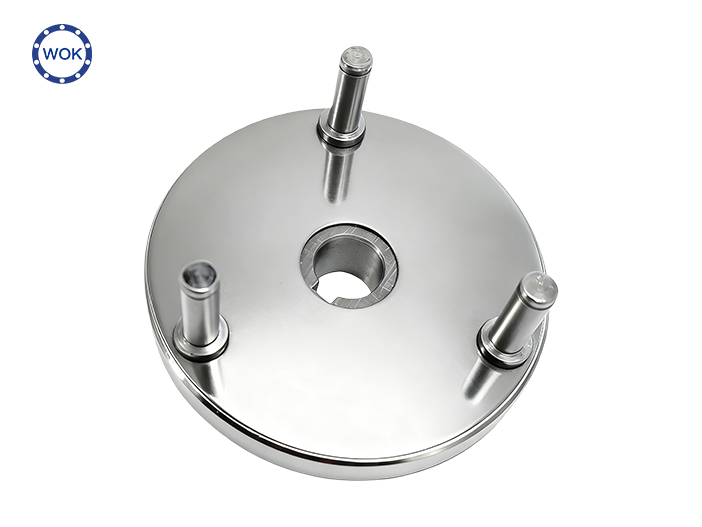

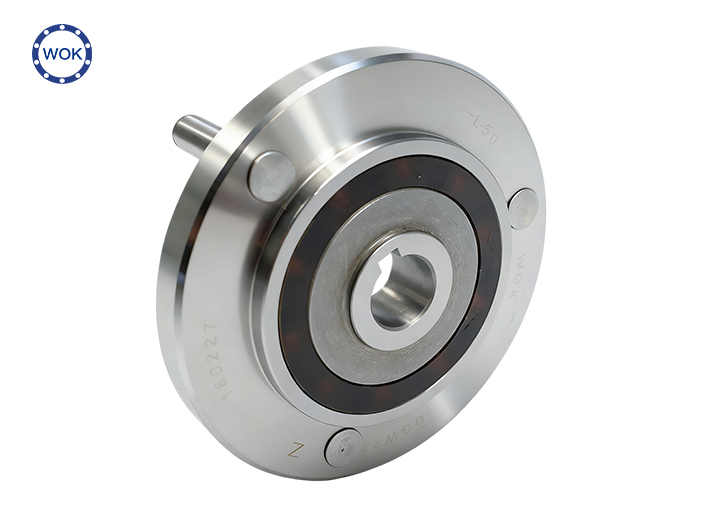

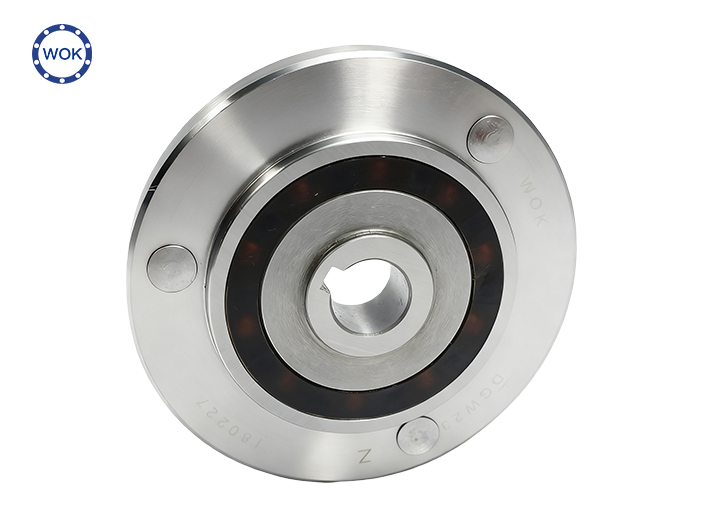

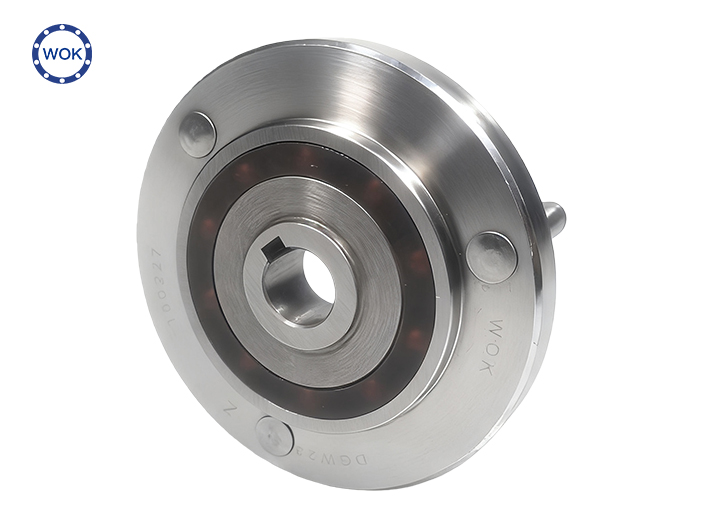

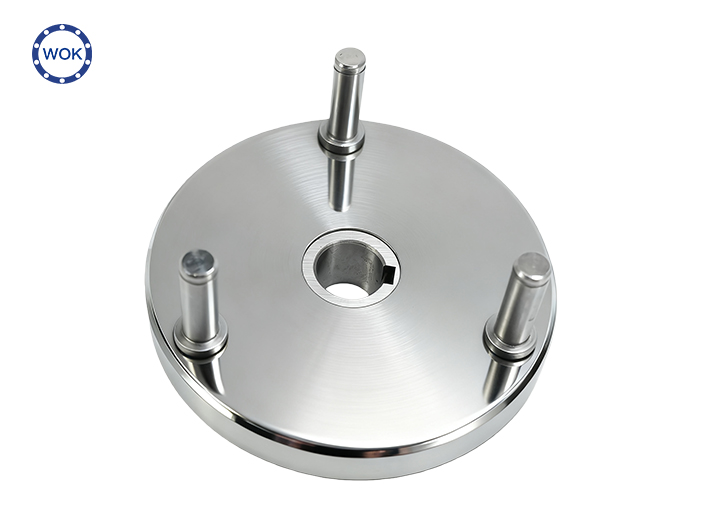

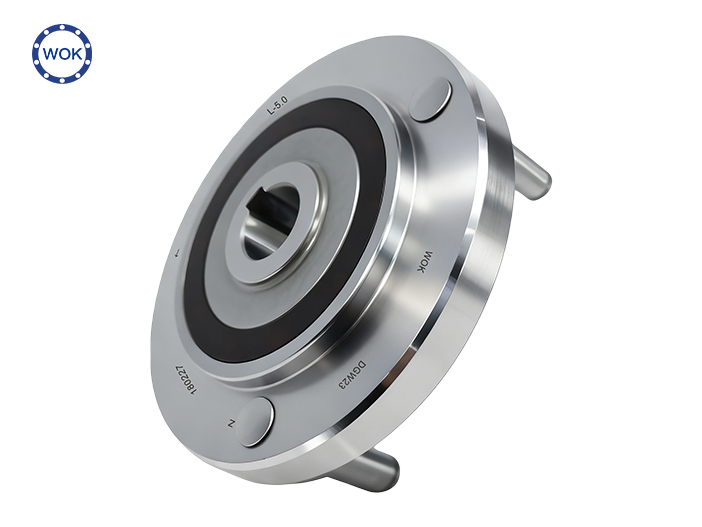

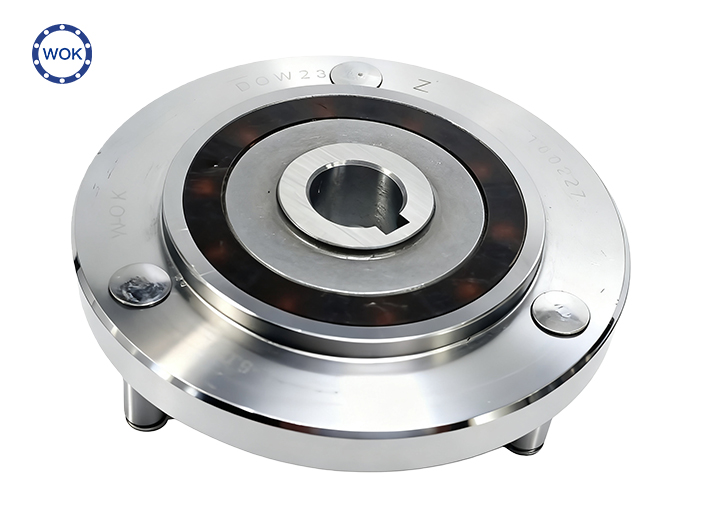

DGW23

電動自行車小型高速電機離合器技術參數表 Technical parameter table for small high-speed motor clutch of electric bicycles
型號 type	外圈外徑 D	外圈厚度 j	三孔圓心所在圓直徑 a	內圈厚度 g	內圈內徑 d	內圈凹槽深度及圓角 y.R	鍵槽 e×t	外臺階直徑 c	墊圈厚度 x	柱銷長度 h	柱銷外徑 b	外圈臺階厚度 f
DGW22	88	11	74.75	12.5	15		5×2.3	23	3.4	20.9	12	8
DGW23	72	11.2	59.1	12.5	12		4×1.8	20	2	27.3	6	8.5
DGW25	87.8	11	71.75	15	15		5×2.3	21	3.3	22.2	10	8
DLK068-56.7-X	72	8.15	56.7	11.5	12		4×1.8	20	2	27	8	8.15
DLK068-56.7-PP-11	68	11.7	56.7	12.5	12		4×1.8	20	2	26.9	8	8
DLK072-57-11-PP	72	11	57	11.9	15	1.R1	5×2.5	27	2.4	19.5	8	8
DLK072-57-13-PP	72	11.2	57	12.5	15	2.5.R1	5×2.5	23	2.4	19.5	8	8
DLK072-57-B	72	8.1	57	11.5	15	1.R1	5×2.5	27	2.4	21	8	8.1
DLK072-57-X	72	8.1	57	11.5	15	1.R1	5×2.5	27	2.4	21	8	8.1
DLK074-60.77-11-PP	74	12	60.77	12.5	12		4×1.8	20	0	20.5	6	8
DLK074-60-B	72	8.1	60	13.7	12	0.7.R0.4	4×1.8	24	3	22	8	8.1
DLK074-60-X	72	8.1	60	13.7	12	0.7.R0.4	4×1.8	24	3	22	8	8.1
DLK074-61-X	72	8.1	61	10	13		5×2.7	21.2	2.2	19.8	8	8.1
DLK088-67.5-X	87.8	8.1	67.5	11.5	15	1.5.R1	5×2.5	27	3.9	22.5	10	8.1
DLK088-67.88-X	88	8.1	67.88	11.5	15	1.5.R0.5	5×2.5	27	3.9	22.4	8	8.1
DLK93-81	93	12	81	13.5	17	1.1	5×2.2	26	1.5	17.5	8	6
DLK94×20-12	94	10.1	78.75	20	12	2.R0.5	4-4×1.5	24	4.2	24.7	12	10.1
XF19	94	8.1	76.88	19.5	12	1.R0.4	4-4×1.5	24	4	24	12	8.1
DGW25行星支架 Planetary carrier	87.8	7	71.25		15	0.5	5×2.3	21	4.3	21.2	10	7

產品介紹

本系列離合器主要適用于小型高速電機。小高速電機離合器，在運行時，它可以很好的軸向和徑向定位。具有運轉平穩，摩擦力小，基本無噪音等特點。

徹底解決了三滾柱離合器的定位不好，運轉時左右擺動容易損壞行星架齒輪的缺點，大大提高了整機的使用壽命。其靜態扭矩達220N.m。

This series of clutches is mainly suitable for small high-speed motors. The small high-speed motor clutch can achieve good axial and radial positioning during operation.

It has the characteristics of smooth operation, low friction, and basically no noise.

Thoroughly solving the problem of poor positioning of the three roller clutch and easy damage to the planetary carrier gears due to left and right swinging during operation, greatly improving the service life of the entire machine. Its static torque reaches 220N. m.

技術要求：

1.配合間隙選配：徑向為0.05-0.08mm，軸向游隙為0.08-0.15mm。

2.離合器傳遞扭矩≥250N.m。

Technical requirements:

1. Matching clearance selection: radial clearance is 0.05-0.08mm, and axial clearance is 0.08-0.15mm.

2. The clutch transmits a torque of ≥ 250N.m.
